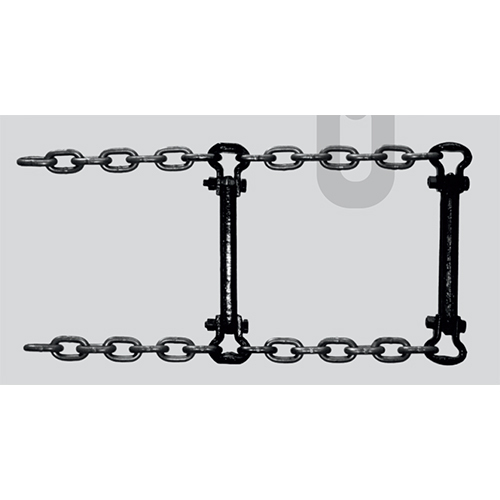

Cement - Bucket Elevator Chains & U Link

P (mm)

a (mm)

d1 (mm)

d2 (mm)

d 3(mm)

h (mm)

h1 (mm)

t (mm)

l (mm)

r (mm)

T (mm)

Profof load (kn)

Breaking load (KN)

Appropriate chain (mm)

Weight each (kg)

56

92

16

18

19

50

25

32

8

9.5

12

50

112

13

0.36

63

105

18

21

23

60

30

40

8

10.5

16

63

142

16

0.5

70

116

20

23

28

68

34

45

10

12

20

80

176

18

0.8

80

132

23

26

31

74

37

45

10

13

24

100

230

20

1.00

91

149

26

29

34

86

43

55

12

14.5

24

126

300

23

1.70

105

172

30

34

38

100

50

55

12

17

24

170

395

26

2.23

126

206

36

40

44

118

59

70

16

20.5

30

250

570

30

3.80

174

239

42

46

50

136

68

70

16

23.5

30

340

775

36

5.30

174

239

42

46

50

136

68

85

16

23.5

36

340

775

36

6.50

P (mm)

a (mm)

d1 (mm)

d2 (mm)

d  3 (mm)

D4 (mm)

h (mm)

h1 (mm)

t (mm)

l (mm)

r (mm)

T (mm)

Profof load (kn)

Breaking load (KN)

Appropriate chain (mm)

Weight each (kg)

56

92

16

18

19

17

64

34

35

8

9.5

14

50

125

13

0.6

63

105

18

21

23

20

71

37

40

8

11.0

16

63

165

16

0.60

70

116

20

23

28

23

80

42

45

10

12.5

20

80

200

18

0.90

80

132

23

26

31

25

89

47

45

10

13.0

20

100

260

20

1.20

91

149

26

29

34

29

99

52

55

12

15.0

24

150

330

23

1.90

105

173

30

34

38

31

114

60

55

12

17.0

24

200

450

26

2.60

126

206

36

40

44

37

134

71

65

16

20.0

30

280

635

30

4.40

174

240

42

47

50

42

157

81

75

16

23.0

36

380

870

36

7.30
